processor

Intel Gen4 i7/i5/i3 series processors

Southbridge

HM86 Chipset series

memory

technology

Single channel DDR3L 1600MHz

maximum capacity

8GB

Memory slot

1*204Pin DDR3 SO-DIMM(Non-ECC)

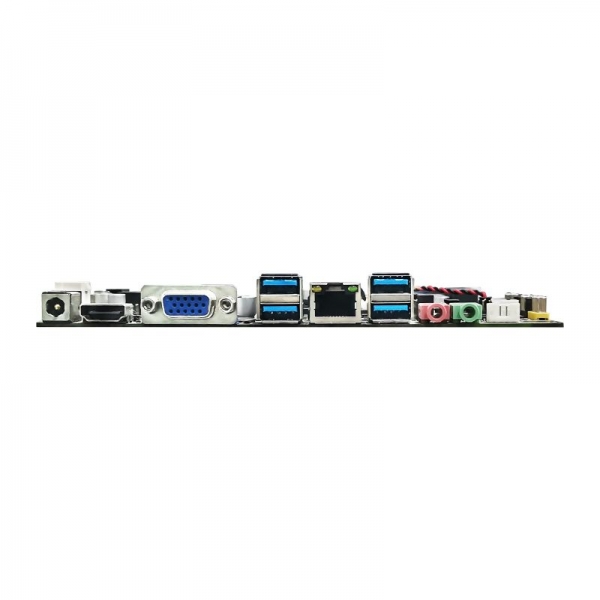

Post I/O

DC interface

1 standard 2.5mm DC power socket; 1 1x4 2.5mm small white socket

HDMI

Standard D socket, supporting HDMI1.4, maximum resolution: 2560*1600@60H.

VGA

Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

Ethernet

1 gigabit network card, RTL8111H network card chip.

Audio

1 (Mic-in, Line-out)

USB port

4 USB 3.0

Internal connector

USB port

6 (one FUSB can transfer out two USB2.0 interfaces);

serial port

1 (serial port supports RS232 and RS485 modes)

power amplifier

1*4Pin 2.0mm small white socket, supporting two speakers of 5W2 Euro.

LVDS interface

Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.

JHDMI interface

2*8Pin pin, supporting the maximum resolution of 2560*1600@60H(HDMI and JHDMI can only be selected).

JVGA

1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

M.2

1 2240 slot with WIFI support.

M.2

1 full-length 2280 2260 M.2 slot, supporting NVME hard disk and SATA hard disk, optional by jumping cap.

WIFI interface

Support onboard WIFI (optional for customers)

serial ata

1 4PIN SATA power interface, supporting SATA 3.0

PWR interface

1 standard 1x4PIN power socket

onekey recovery

One 1*2Pin JRECO one-key restore interface (function to be developed)

Watchdog

output

system reset

space

Programmable for 1 ~ 255 seconds

power consumption

Maximum power

Standby power consumption: 16W Full load power consumption: 86W

environment

temperature range

working environment

Storage environment

Temperature:-10 ~ 60℃ Humidity: 5%~95%

Temperature: -40~85℃ Humidity: 5%~95%

Physical size

measure

170 mm x 170 mm
