processor

Intel Gen2/3 i7/i5/i3 series processors

Southbridge

HM77 Chipset series

memory

technology

Single channel DDR3 1600MHz

maximum capacity

8GB

Memory slot

1*204Pin DDR3 SO-DIMM(Non-ECC)

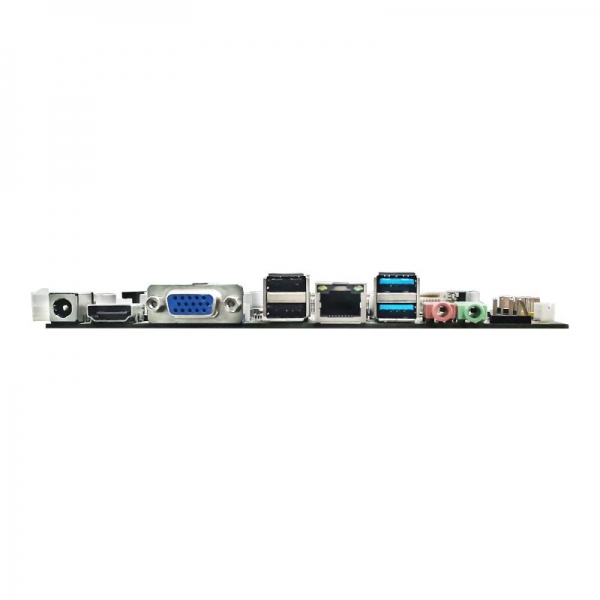

Post I/O

DC interface

1 standard 2.5mm DC power socket; 1 1x4 2.5mm small white socket

HDMI

Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60H.

VGA

Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

Ethernet

1 or 2 gigabit network cards (LAN1 and USB2.0 are laid together), RTL8111H network card chip.

Audio

1 (Mic-in, Line-out)

USB port

2 USB 3.0；; 2 USB 2.0

Internal connector

USB port

6 (one FUSB can transfer out two USB2.0 interfaces);

serial port

2 (serial ports all support RS232 mode, among which JCOM1 supports RS485 mode)

Audio

1 2*5Pin pin (Mic-in, Line-out)

power amplifier

1*4Pin 2.0mm small white socket, supporting two speakers of 5W2 Euro.

LVDS interface

Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.

JHDMI interface

2*8Pin pin, supporting the maximum resolution of 2560*1600@60H(HDMI and JHDMI can only be selected).

JVGA

1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

Mini-PCIe

1 half-length card Mini PCIe slot with WIFI support.

MSATA

1 full-length Mini PCIe slot with SSD hard drive support.

serial ata

1 4PIN SATA power interface, supporting SATA 3.0

PWR interface

1 standard 1x4PIN power socket

Watchdog

output

system reset

space

Programmable for 1 ~ 255 seconds

power consumption

Maximum power

Standby power consumption: 20.9W Full load power consumption: 53.2W w.

environment

temperature range

working environment

Storage environment

Temperature:-10 ~ 60℃ Humidity: 5%~95%

Temperature: -40~85℃ Humidity: 5%~95%

Physical size

measure

170 mm x 170 mm
