processor

Intel Gemini Lake-M/D series processors

CPU

J5005

memory

technology

Single channel DDR4 2400MHz

maximum capacity

8GB

Memory slot

1 x 260Pin DDR4 SO-DIMM(Non-ECC)

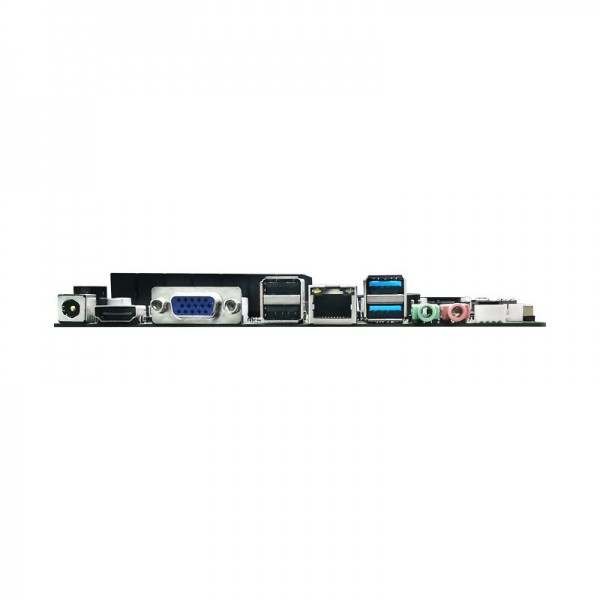

Post I/O

power source

1 standard 2.5mm DC power socket; One 2x2 ATX power socket or 1x2 green terminal is optional.

HDMI

Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60Hz.

VGA

Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

Ethernet

1 or 2 gigabit network cards (LAN1 and USB2.0 are laid together), RTL8111F network card chip.

USB port

2 USB3.0 interfaces

Audio

2 (Mic-in, Line-out)

Internal connector

USB port

5 USB2.0 interfaces (one FUSB can switch out two USB2.0 interfaces);

PS2 interface

1*7Pin 2.0mm white socket, which can connect PS2 keyboard and PS2 mouse.

serial port

6 (serial ports all support RS232 mode, among which COM1 and COM2 support RS422 and RS485 mode).

parallel port

1 2*13Pin pin

JHDMI interface

2*8Pin pin, supporting the maximum resolution of 2560*1600@60H(HDMI and JHDMI can only be selected).

JVGA

1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

LVDS interface

Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.

EDP interface

Support 4 LANE eDP channel and the maximum resolution of 4096x2160@60HZ(EDP and LVDS can only be selected).

Audio

1 2*5Pin pin (Mic-in, Line-out)

power amplifier

1*4Pin 2.0mm white socket, supporting two 3W4 speakers.

Mini-PCIe

1 Mini PCIe slot of full-length card (supporting WIFI and 4G)

MSATA

Support SSD hard disk

serial ata

1 7Pin SATA interface, supporting SATA3.0(7Pin and 22Pin interfaces are optional),

GPIO

8-way bidirectional 3.3V

PWR interface

1 standard 2x2PIN power socket

Watchdog

output

system reset

space

Programmable for 1-255 seconds

power consumption

Maximum power

Standby power consumption: 7W Full load power consumption: 43W

environment

temperature range

working environment

Storage environment

Temperature:-10 ~ 60℃ Humidity: 5%~95%

Temperature: -40~85℃ Humidity: 5%~95%

Physical size

measure

170 mm x 170mm
