Industrial motherboard

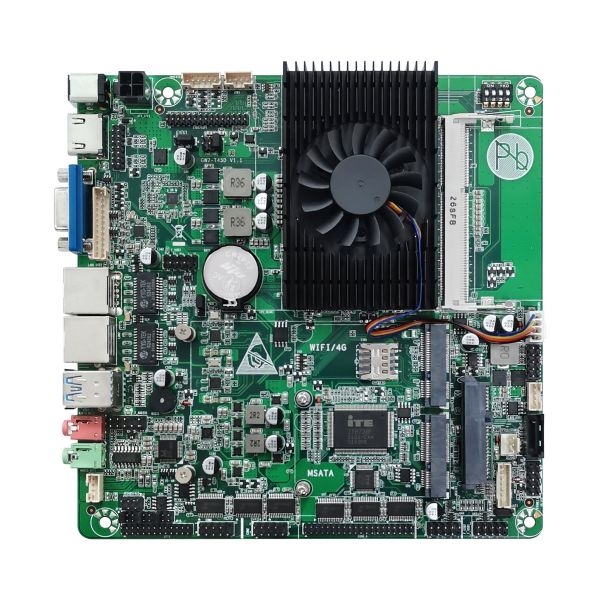

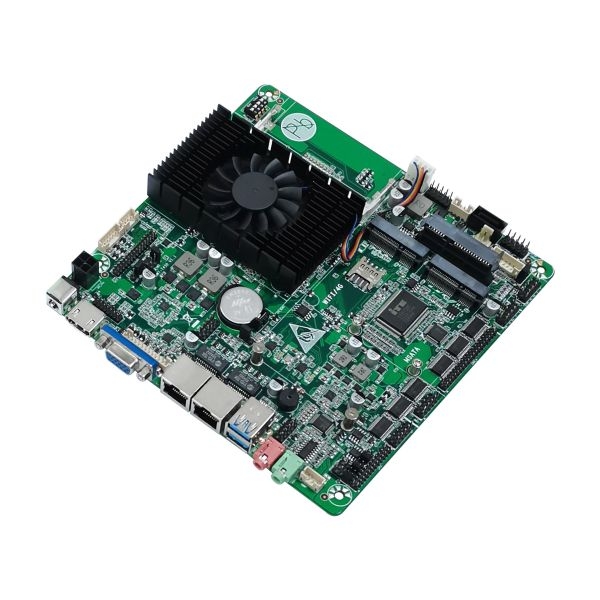

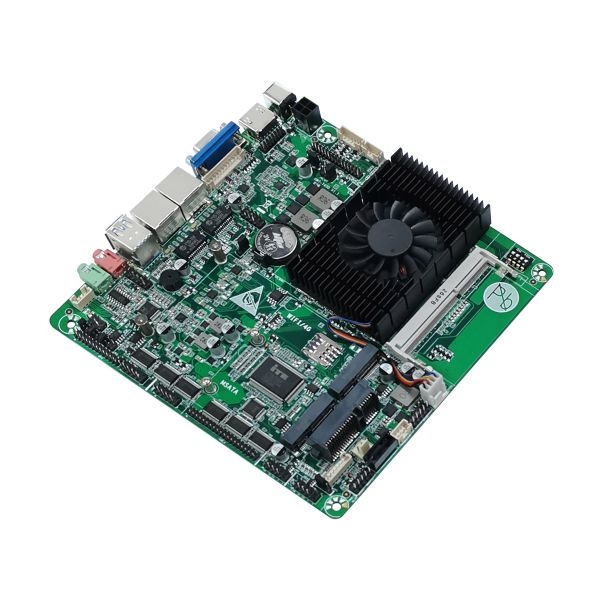

GW7-T45D-V1.1

    processor

    Intel Haswell-U series processors.

    CPU

    I5-4300U

    memory

    technology

    Single channel DDR3L 1600MHz



    maximum capacity

    8GB



    Memory slot

    1*204Pin DDR3 SO-DIMM(Non-ECC)

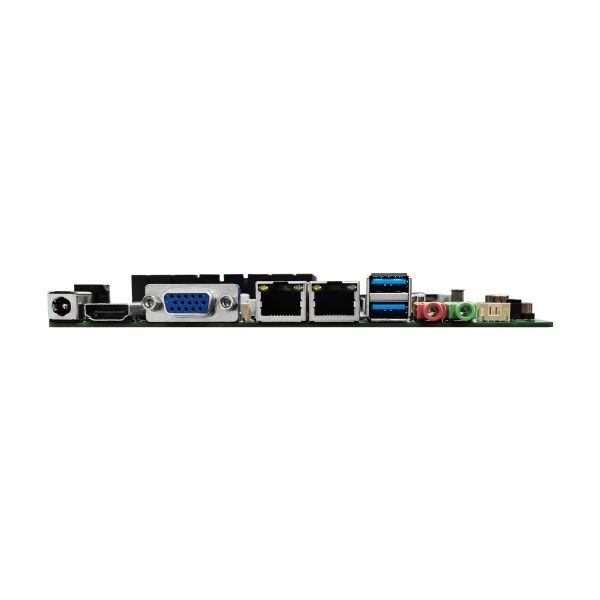

    Post I/O

    DC interface

    1 standard 2.5mm DC power socket



    HDMI

    Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60Hz.



    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.



    Ethernet

    1 or 2 gigabit network cards (LAN1 and USB2.0 are laid together), RTL8111H network card chip.



    Audio

    1 (Line-out, Mic-in)



    USB port

    2 USB 3.0

    Internal connector

    USB port

    6 (one FUSB can transfer out two USB2.0 interfaces);



    serial port

    6 (serial ports all support RS232 mode, among which COM2 and COM3 support RS422 and RS485 mode)



    parallel port

    1 2*13Pin pin



    PS/2 interface

    1 (PS/2 mouse, PS/2 keyboard)



    Audio

    1 2*5Pin pin (Mic-in, Line-out)



    power amplifier

    1*4Pin 2.0mm white socket, which can support up to two 5W2 speakers.



    JHDMI interface

    2*8Pin pin, supporting the maximum resolution of 2560*1600@60HZ(HDMI and JHDMI can only be selected).



    JVGA

    1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).



    LVDS interface

    Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz(LVDS and EDP can only be selected).



    Mini-PCIe

    1 full-length card Mini PCIe slot, supporting WIFI, 4G module.



    MSATA

    1 Mini PCIe slot for full-length card, supporting SSD hard disk.



    serial ata

    Two 7PIN SATA interfaces and 2.5-inch hard disk interfaces, supporting SATA 3.0.



    GPIO

    8-way bidirectional 5V



    PWR interface

    1 standard 2x2PIN power socket

    Watchdog

    output

    system reset



    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 9.6W Full load power consumption: 44.4W

    environment

    temperature range

    working environment

    Storage environment





    Temperature:-10 ~ 60Humidity: 5%~95%

    Temperature: -40~85Humidity: 5%~95%

    Physical size

    measure

    170 mm x 170 mm
