processor |
Intel Bay Trail-M/D series processors |
||
|
chip set |
J1900、J1800、N2940、N2930、N2840 |
||
|
memory |
technology |
Single channel DDR3L 1333MHz |
|
|
|
maximum capacity |
8GB |
|
|
|
Memory slot |
1 x 204Pin DDR3L SO-DIMM(Non-ECC) |
|
|

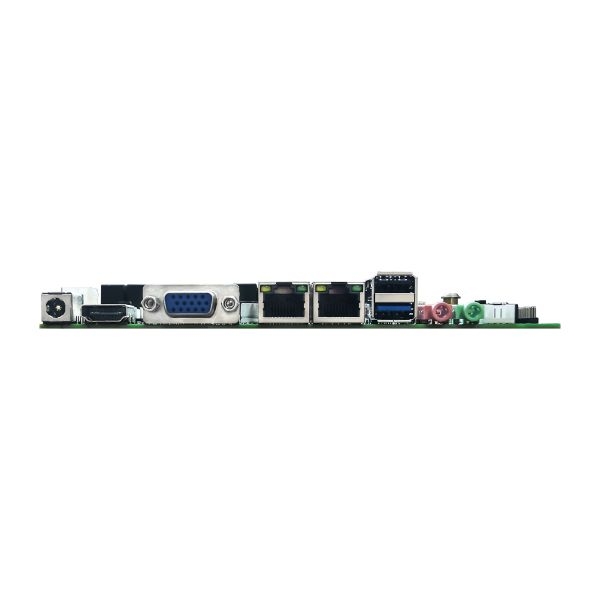

Post I/O |
DC interface |
1 standard 2.5mm DC power socket |
|
|
|
HDMI |
Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60Hz. |
|
|
|
VGA |
Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz. |
|
|
|
Ethernet |
1 or 2 gigabit network cards (LAN1 and USB2.0 are laid together), RTL8111F network card chip. |
|
|
|
Audio |
1 (Mic-in, Line-out) |
|
|
|
USB port |
1 USB 3.0；; 1 USB 2.0 |
|
|
Internal connector |
USB port |
7 USB2.0 interfaces (two USB2.0 interfaces can be transferred from a double-row FUSB pin, and one USB2.0 can be transferred from a single-row FUSB pin). |
|
|
|
serial port |
6 (serial ports all support RS232 mode, among which COM2 and COM3 support RS422 and RS485 mode) |
|
|
|
parallel port |
1 2*13Pin pin |
|
|
|
PS/2 interface |
1*7Pin 2.0mm white socket, which can connect PS/2 keyboard and PS/2 mouse. |
|
|
|
Audio |
1 2*5Pin pin (Mic-in, Line-out) |
|
|
|
power amplifier |
1*4Pin 2.0mm small white socket, supporting two speakers of 5W2 Euro. |
|
|
|
JVGA |
1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected). |
|
|
|
JHDMI |
1*8Pin pin, supporting the maximum resolution of 2560*1600@60H(HDMI and JHDMI can only be selected). |
|
|
|
LVDS interface |
Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz. |
|
|
|
EDP interface |
Support 4 LANE eDP channel and the maximum resolution of 1920x1200@60HZ(EDP and LVDS can only be selected). |
|
|
|
Mini-PCIe |
1 Mini PCIe slot, supporting WIFI,4G module. |
|
|
|
MSATA |
1 Mini PCIe slot with SSD hard disk support. |
|
|
|
serial ata |
Provide a 7PIN signal interface and a 1*4PIN SATA power interface, and support SATA 2.0 (either with a 2.5-inch hard disk interface). |
|
|
|
GPIO interface |
8-way bidirectional 3.3V |
|
|
|
PWR interface |
1 standard 2x2PIN ATX power socket |
|
|
Watchdog |
output |
system reset |
|
|
|
space |
Programmable for 1 ~ 255 seconds |
|
|
power consumption |
Maximum power |
Standby power consumption: 7.2W Full load power consumption: 39.6W |
|
|
environment |
temperature range |
working environment |
Storage environment |
|
|
|
Temperature:-40 ~ 70℃ Humidity: 5%~95% |
Temperature: -40~85℃ Humidity: 5%~95% |
|
Physical size |
measure |
170 mm x 170 mm |
|
