processor

Intel Whiskey Lake/Comet Lake-U, i7/i5/i3 series processors.

memory

technology

Dual channel DDR4 2666MHz

maximum capacity

32GB

Memory slot

2*260Pin DDR4 SO-DIMM(Non-ECC)

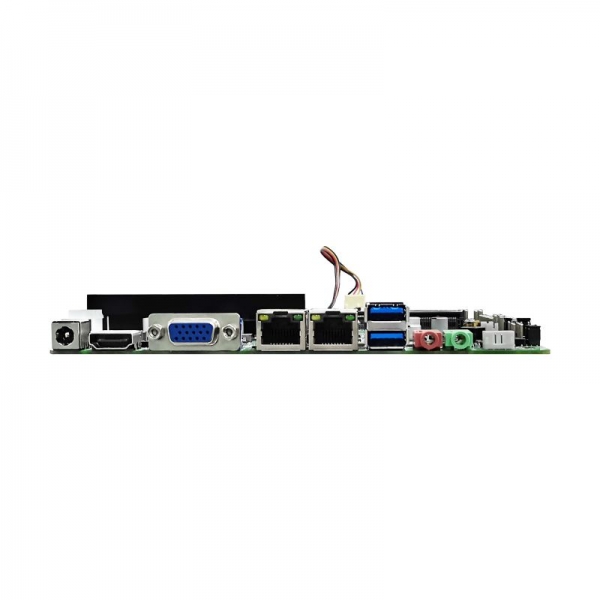

Post I/O

DC interface

1 standard 2.5mm DC power socket

HDMI

Standard D socket, supporting HDMI1.2, (VGA interface and JVGA interface can only be selected)

VGA

Standard DB15 socket (VGA interface and JVGA interface can only be selected)

Ethernet

One or two gigabit network cards (LAN1 and USB2.0 are laid together), and I211AT network card chip.

Audio

1 (Line-out, Mic-in)

USB port

2 USB 3.0

Internal connector

USB port

6 (one FUSB can transfer 2 USB2.0 interfaces);

serial port

6 (serial ports all support RS232 mode, among which COM2 and COM3 support RS485 and RS422 mode)

PS2 interface

1*7Pin 2.0mm white socket, which can connect PS2 keyboard and PS2 mouse.

FAudio

1 2*5Pin pin (Mic-in, Line-out)

power amplifier

1*4Pin 2.0mm white socket, which can support up to two 5W2 speakers.

JVGA

Supports 1*12Pin pins (VGA and JVGA can only be selected)

JHDMI interface

Supports 2*8Pin pins (HDMI and JHDMI can only be selected).

LVDS/EDP interface

Support single (dual) channel 18(24) bits, (LVDS and EDP can only be selected)

Mini-PCIe

1 Mini PCIe slot of full-length card, supporting WIFI and 4G modules.

1 Mini PCIe slot for full-length card, supporting SSD hard disk.

M.2

1 full-length M.2 KEY M slot, supporting M.2 hard disk.

serial ata

1 7PIN SATA interface, supporting SATA 3.0

GPIO

8-way bidirectional 3.3V

PWR interface

1 standard 2x2PIN power socket

Watchdog

output

system reset

space

Programmable for 1-255 seconds

power consumption

Maximum power

Standby power consumption: 13.2W Full load power consumption: 62.4W

environment

temperature range

working environment

Storage environment

Temperature:-10 ~ 60℃ Humidity: 5%~95%

Temperature: -40~85℃ Humidity: 5%~95%

Physical size

measure

170 mm x 170 mm
