processor

Intel Bay Trail-M/D series processors

CPU

Such as: J1800, J1900, N2940, N2930, N2840.

memory

technology

Single channel DDR3L 1333MHz

maximum capacity

8GB

Memory slot

1 x 204Pin DDR3L SO-DIMM

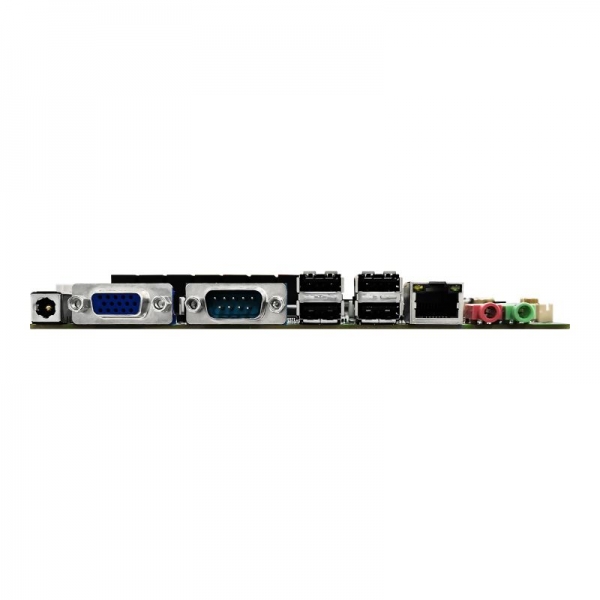

Post I/O

power source

1 standard 2.5mm DC power socket

serial port

Support one onboard DB9 serial port (RS232 mode only)

VGA

Standard DB15 socket (VGA interface and JVGA interface can only be selected)

Ethernet

1 Realtek Gigabit NIC

USB port

4 USB2.0 interfaces

Audio

2 (Mic-in, Line-out)

Internal connector

USB port

5 USB2.0 interfaces (one FUSB can switch out two USB2.0 interfaces)

PS2 interface

1*7Pin 2.0mm white socket, which can connect PS2 keyboard and PS2 mouse.

serial port

5 (serial ports all support RS232 mode, among which COM2 and COM3 support RS422 and RS485 mode)

parallel port

1 2*13Pin pin

JVGA

Supports 1*12Pin pins (VGA and JVGA can only be selected)

LVDS interface

Support single (dual) channel 18(24) bits, (LVDS and EDP can only be selected)

EDP interface

Support 4 LANE eDP channel

Audio

1 2*5Pin pin (Mic-in, Line-out)

power amplifier

1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2.

Mini-PCIe

1 Mini PCIe slot of full-length card (supporting WIFI and 4G modules)

MSATA

Support SSD hard disk

serial ata

1 7Pin SATA interface, supporting SATA 2.0

GPIO

8-way bidirectional 3.3V

PWR interface

1 standard 2x2 Pin power socket

Watchdog

output

system reset

space

Programmable for 1-255 seconds

power consumption

Maximum power

Standby power consumption: 6W Full load power consumption: 32.4W

environment

temperature range

working environment

Storage environment

Temperature:-10 ~ 60℃ Humidity: 5%~95%

Temperature: -40~85℃ Humidity: 5%~95%

DC power supply

adapter

DC 12V power input

Physical size

measure

170 mm x 170 mm
