Motherboard chip

C612

CPU

Dual-channel Intel Xeon E5 LGA2011-V3 pin CPU (DDR3 memory controller required)

For example: E5-2629v3/2666v3/2673v3/2676v3/2678v3/2696v3/2684v4/2696v4, etc.

memory

4*DDR3 DIMM, 1066/1333/1600/1866MHz(MAX), with maximum support of 128G (32G*4).

Cunzhu

1*M.2 slot (NVME/SATA protocol); 6*SATA interface (SATA3.0)

Display interface

/

network

1*RJ45 interface

Network card chip

RTL8111H gigabit network card chip

PS/2

1 KB interface and 1 MS interface.

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

Realtek ALC897 HD Audio Chip

Usb interface

IO interface: 4*USB3.0, 2*USB2.0;

Built-in pins: 2 sets of USB2.0 pins (4 USB2.0 ports can be expanded); 1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

PCIE

1*PCIE X16 3.0 slot; 1*PCIE X4 3.0 slot

Functional pin

1*FPANEL panel pin; 2*4Pin CPU fan; 2*3Pin SYS fan; 1*COM pin; 1*JBAT pin

Power input

24Pin+2*8Pin ATX power socket

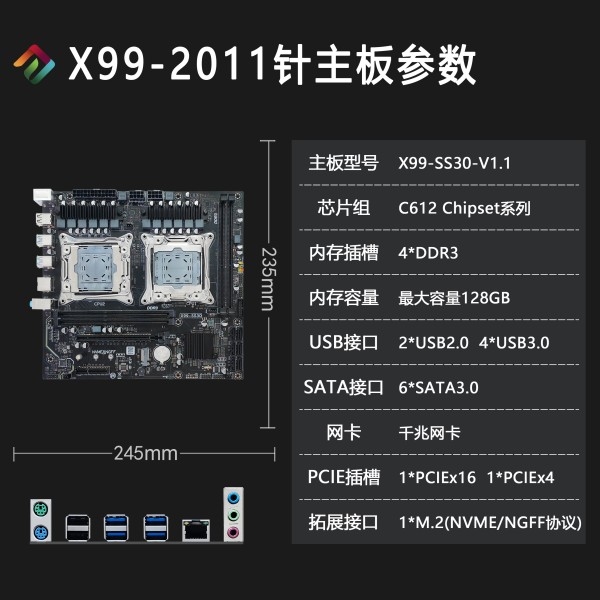

product size

235 x 245mm, 6-layer PCB
