Motherboard chip

B85

CPU

Intel CORE I7/Xeon E5 LGA2011-V3 Pin CPU

For example: i7-5820k/E5-2666v3/E5-2696v3/E5-2696v4, etc.

memory

4*DDR4 quad-channel DIMM, 2133/2400MHz(MAX), with maximum support of 128G (32G*4).

Cunzhu

2*M.2 slots (CN2:PCIE 3.0 X4, CN3: SATA 3.0); 6*SATA interface (SATA3.0*4+SATA2.0*2); CN3 and SATA0 multiplexing

Display interface

/

network

1*RJ45 interface

Network card chip

RTL8111H gigabit network card chip

PS/2

1 KB interface and 1 MS interface.

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

Realtek ALC897 HD Audio Chip

Usb interface

IO interface: 2*USB3.0, 6*USB2.0;

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be extended); 1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

PCIE

PCIE1/3 :PCIE X16 3.0 slot (from CPU)

PCIE4: PCIE X4 3.0 slot (from CPU)

PCIE2:PCIE X1 2.0 full-length slot (from PCH)

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 2*3Pin+1*4Pin SYS fan; 1*JBAT pin; 1*TPM pin; 1*COM pin

Power input

24Pin+8Pin ATX power socket

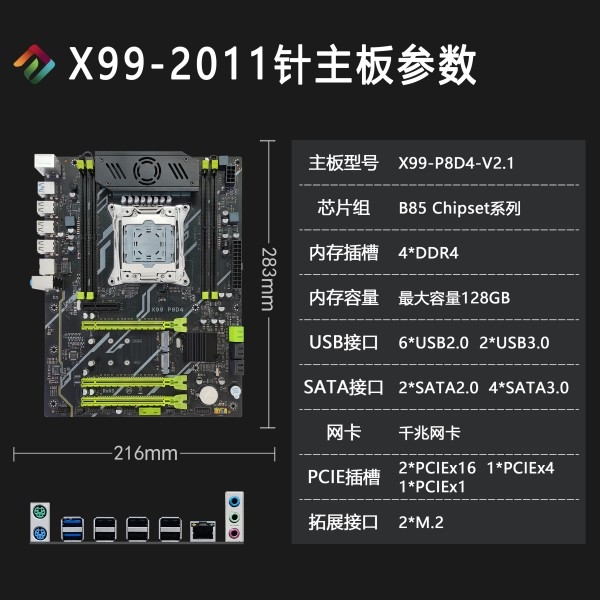

product size

283 x 216mm, 6-layer PCB
