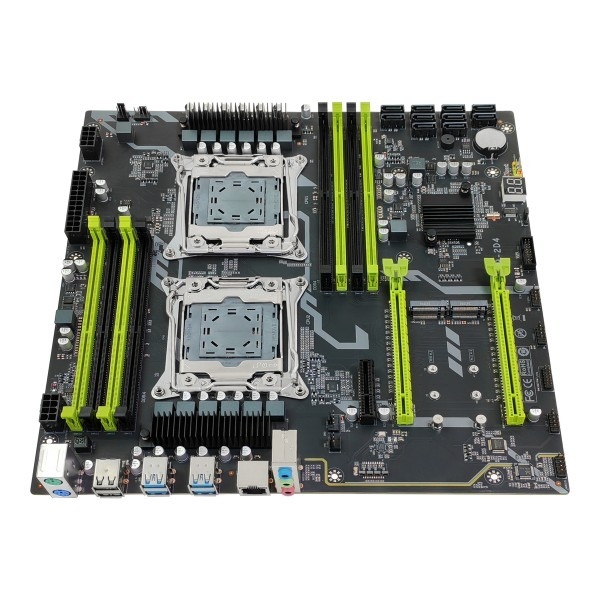

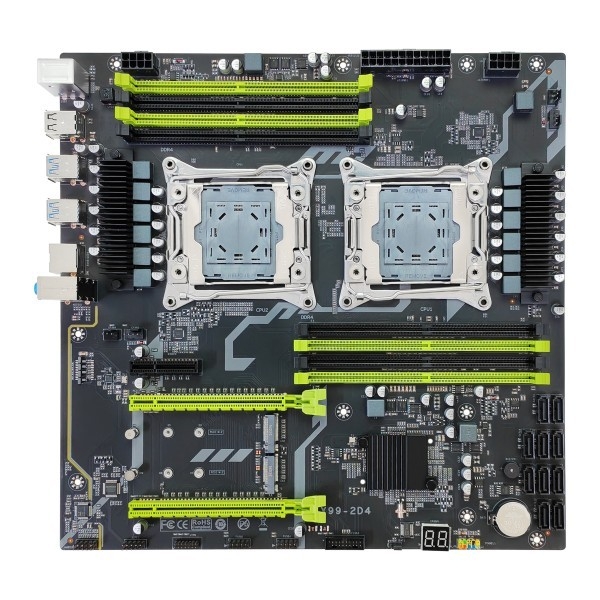

Motherboard chip

C612

CPU

Dual-channel Intel Xeon E5 LGA2011-V3 pin CPU (two CPU models need to be the same)

For example: E5-2603v3/2666v3/2678v3/2696v3/2603v4/2680v4/2696v4, etc.

memory

8*DDR4 DIMM, 2133/2400MHz(MAX), maximum support of 256G (32G*8), orange slot as the main channel.

Cunzhu

2*M.2 slot (NVME protocol); 10*SATA interface (SATA3.0)

Display interface

/

network

1*RJ45 interface

Network card chip

RTL8111H gigabit network card chip

PS/2

1 KB interface and 1 MS interface.

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

Realtek ALC897 HD Audio Chip

Usb interface

IO interface: 4*USB3.0, 2*USB2.0;

Built-in pins: 2 sets of USB2.0 pins (4 USB2.0 ports can be expanded); 1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

PCIE

2*PCIE X16 3.0 slot (from CPU1)

1*PCIE X4 3.0 slot (from CPU2)

Functional pin

1*FPANEL panel pin; 2*4Pin CPU fan; 2*3Pin SYS fan; 1*JBAT pin

Power input

24Pin+2*8Pin ATX power socket

product size

290 x 295mm, 6-layer PCB
