All in one pc

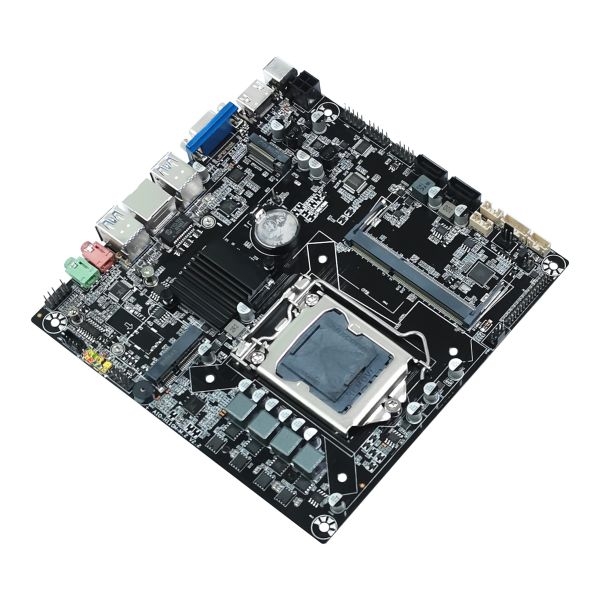

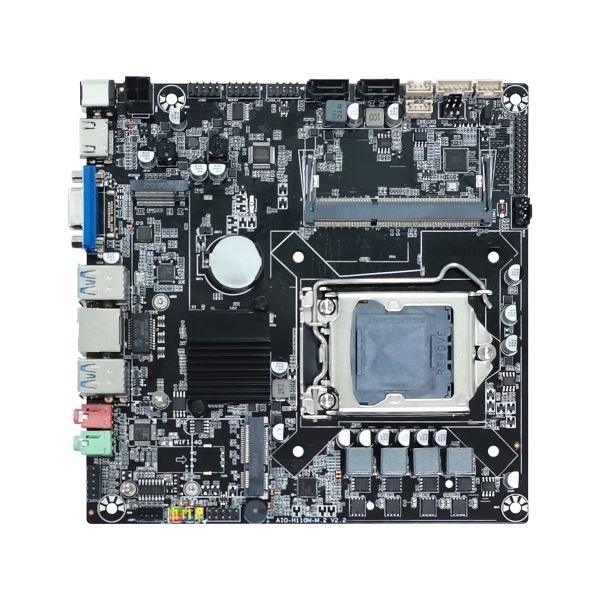

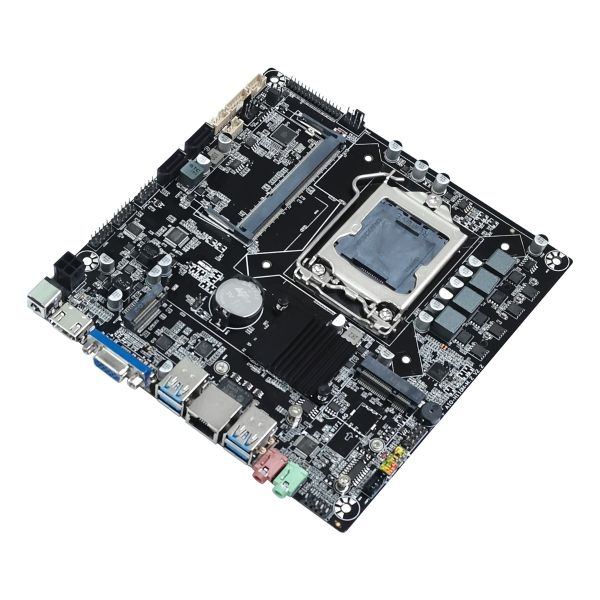

AIO-H110M-M.2-V2.2

    processor

    Support Celeron, Pentium, I3, I5 and I7 series CPU (95W CPU is not recommended).

    Southbridge

    H110 Chipset series

    memory

    technology

    Single channel DDR3L 1600MHz



    maximum capacity

    Supports up to 8GB of memory.



    Memory slot

    1*204Pin DDR3L SO-DIMM(Non-ECC)

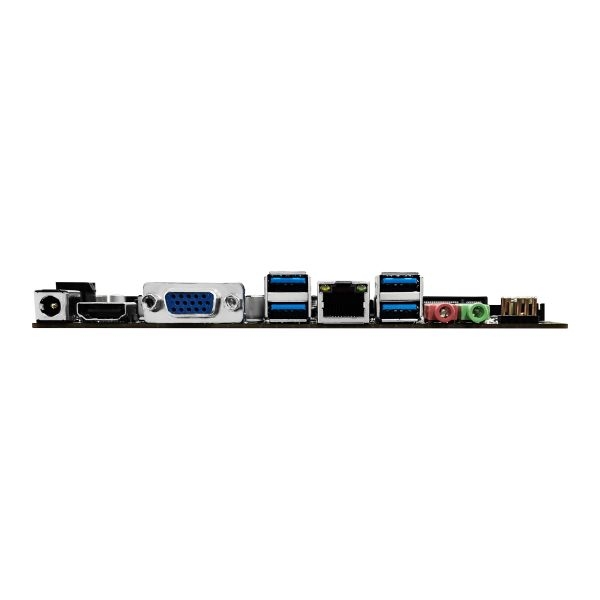

    Post I/O

    power source

    1 standard 2.5mm DC12V/19V power socket



    HDMI

    Standard D socket, supporting HDMI1.2.



    DP

    Standard DP socket



    Ethernet

    1 Realtek Gigabit NIC



    Audio

    1 (Line-out, Mic-in)



    USB port

    4 USB 3.0

    Internal connector

    FAudio

    1 2*5Pin pin (Mic-in, Line-out)



    power amplifier

    1*4Pin 2.0mm black socket, which can support up to 2 speakers with 5W2.



    USB port

    4 (2 FUSB can be transferred out of 4 USB2.0 interfaces)



    Mini-PCIe

    1 Mini PCIe slot with full length/(half) card, supporting WIFI.



    FAN

    2 (1 SYS_FAN; 1 CPU_FAN)



    LVDS interface

    Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1080@60Hz.



    JBL1

    1*4Pin 2.0mm white socket, which supports manual adjustment of backlight brightness of LVDS screen.



    serial ata

    Two 7Pin SATA interfaces and two 4Pin power sockets, supporting SATA3.0.



    serial port

    1 (RS232 mode only)



    DEBUG

    1 2*5PIN debugging interface



    M.2

    1 full-length M.2 KEY E slot, only supports NVME M.2 hard disk.



    PWR interface

    1 standard 2x2Pin power socket, also can support 2Pin Phoenix terminal.

    environment

    temperature range

    working environment

    Storage environment





    Temperature:-10 ~ 60Humidity: 5%~95%

    Temperature: -40~85Humidity: 5%~95%

    Physical size

    measure

    170 mm x 170 mm
