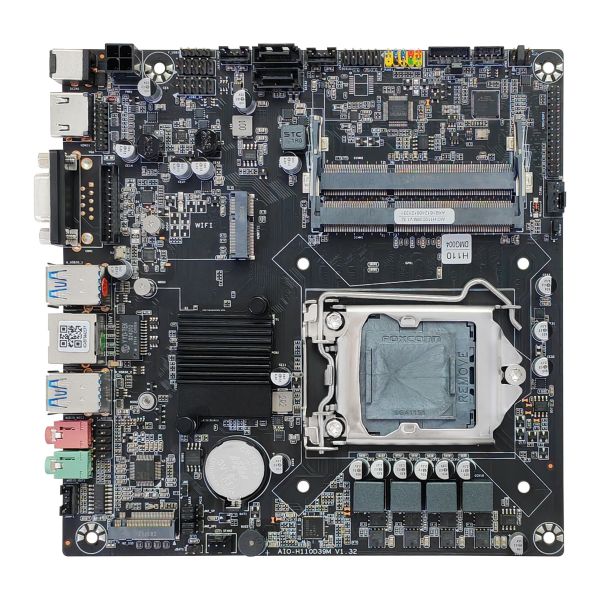

Motherboard chip

Intel H110

CPU

Intel 6th, 7th, 8th and 9th generation CPU

Optional: I3-6100, I3-7100, I5-7400, I5-8500, I3-9100, I7-9700, G5400, G3900, etc.

memory

2*DDR3 SO-DIMM, 1600MHz/16G, single slot supports up to 8 G.

Cunzhu

1*M.2 slot (NGFF/NVME jump cap switching), JM2_SP, JM2_SP1 pins set M.2 mode.

2*SATA 3.0 interface+2*SATA power interface

Display interface

1*HDMI 1.4 interface (either with built-in HDMI), 1*VGA interface (either with built-in VGA), 1*LVDS interface.

network

1*RJ45 interface

Network card chip

Realtek RTL8111H Gigabit NIC Chip

WIFI

1*M.2 WIFI slot

audio frequency

1*Line out； 1*MIC In； 1*F_Audio built-in pin; 1*JAMP built-in power amplifier pin

Audio chip

Realtek ALC897 HD Audio Chip

Usb interface

IO interface: 4 * USB 3.0; Built-in pins: 3 sets of USB2.0 pins (5 USB2.0 ports can be expanded)

LVDS function

1*LVDS 30Pin pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V);

1*3Pin backlight positive and negative jump cap, 1*3Pin closes/opens LVDS pin.

Support copy/extended display

LVDS backlight function

1*6Pin INVERTER interface, 1*4Pin manual adjustment of backlight pin.

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan

Power input

1*DC socket; 2*2Pin built-in power socket (DC12V~19V power input)

product size

Thin Mini-ITX motherboard specification, 170 x 170 mm x 6L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 9.5W Full load power consumption: 80W

other

1 JCMOS jump cap; 2*5Pin diagnostic card interface; 1*ME pin
